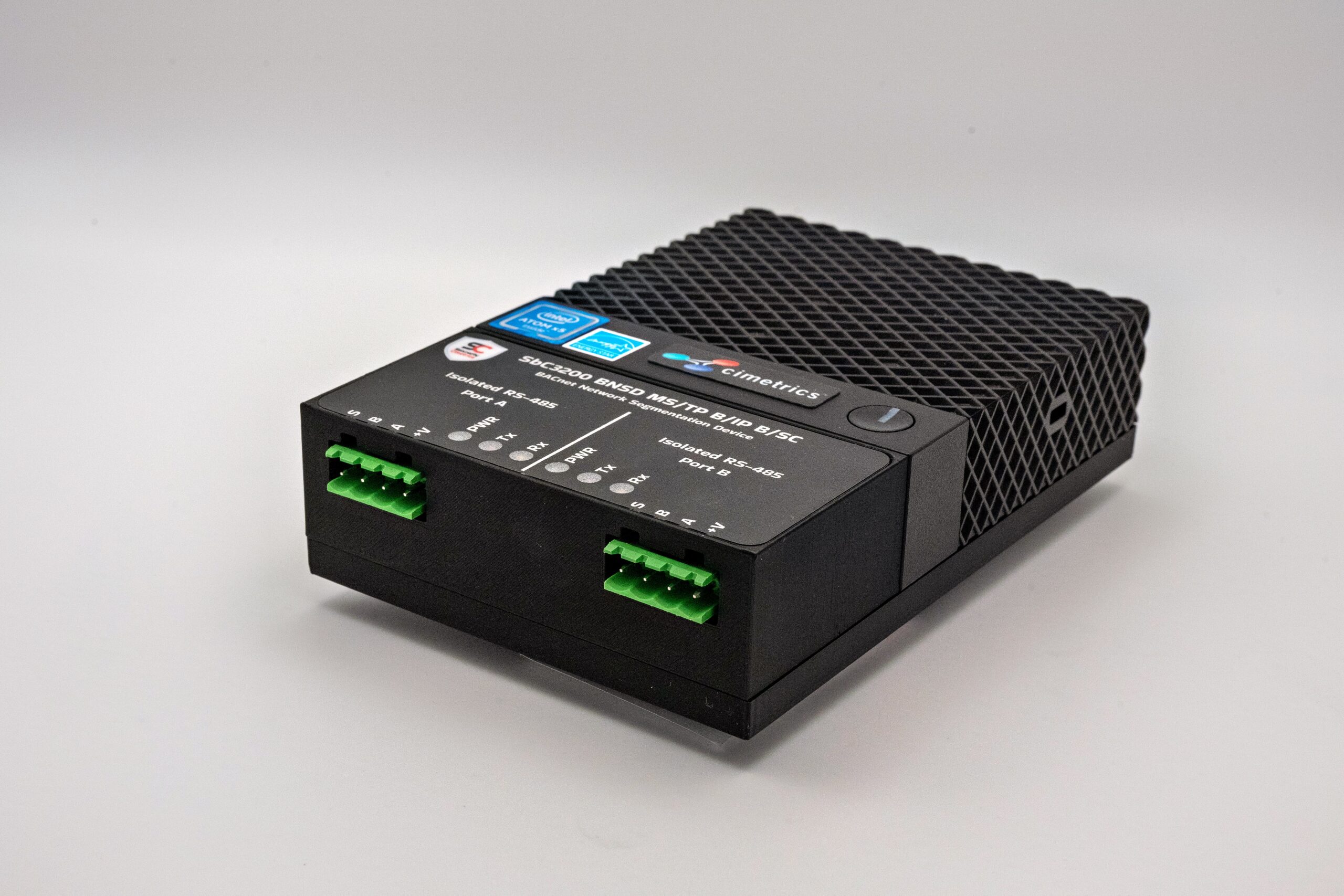

SbC3200 – Secured by Cimetrics SbC3200 BNSD

SBC3200 BNSDs FEATURES

• SbC3200 has 1 Ethernet and 2 RS-485 ports.
• BACnet MS/TP to BACnet/IP and BACnet/SC router.
• Connects/Segments unsecured BACnet MS/TP and BACnet/IP networks from secured BACnet/SC networks.
• Supports the following MSTP baud rates: 9600, 19200, 38400, 57600, 76800, and 115200 bps.
• Support for MSTP extended frames
• Built-in configurable BACnet Firewall Engine – Controls the flow of BACnet traffic between the connected networks.
• IT integration via Syslog: Log real-time events, including BACnet Firewall actions.
• Supports OpenVPN, which enables non-BACnet communication with devices on the private network.
• Wireshark packet capture on Ethernet with optional decoding of encrypted traffic.
• Web-based configuration interface.
• Integrates with the Secured by Cimetrics BACnet/SC management and diagnostic platform

CYBERSECURITY BENEFITS of SbC3200 BNSD

• SbC BACnet Firewall can reduce the severity of cybersecurity threats in segmented networks.
• Building Automation System operators can be alerted to unexpected traffic due to misconfiguration or malicious actors.
• Policy-based monitoring provides valuable visibility into the Building Automation System for IT network and security operations teams via syslog.


  DEPLOY YOUR NETWORK WITH SECURED BY CIMETRICS:

  Cimetrics SbC3200 BACnet Network Segmentation Device (BNSD) routes BACnet packets (only BACnet packets) between BACnet MS/TP and BACnet/IP networks, as well as BACnet MS/TP and BACnet/IP to BACnet/SC networks. In a typical deployment, a Secured by Cimetrics Appliance (SbC4000) monitors the BNSD’s BACnet Firewall to detect and diagnose network and security issues. The SbC3200 BNSD can monitor and enforce policy on BACnet messages flowing between BACnet MS/TP, BACnet/IP and BACnet/SC network segments.
